Glazing

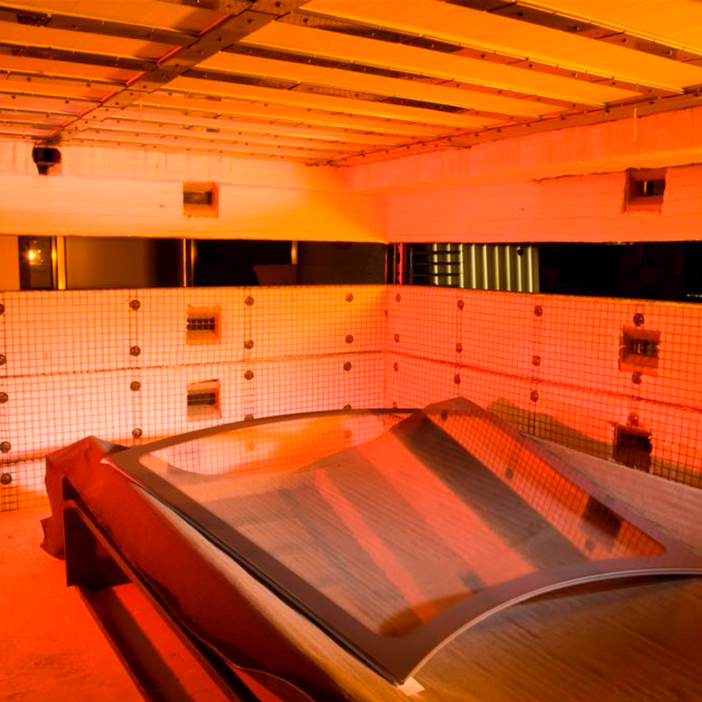

Sag bending is a process used to create curved or contoured glass shapes without introducing optical distortion. The glass is heated in a kiln until it softens and gradually sags under its own weight into a mould, forming the desired profile. This technique is ideal for producing smooth, precise curves for marine, architectural, and automotive applications.

Sag-bent glass can be combined with toughening or lamination for added strength and safety, ensuring compliance with relevant standards.

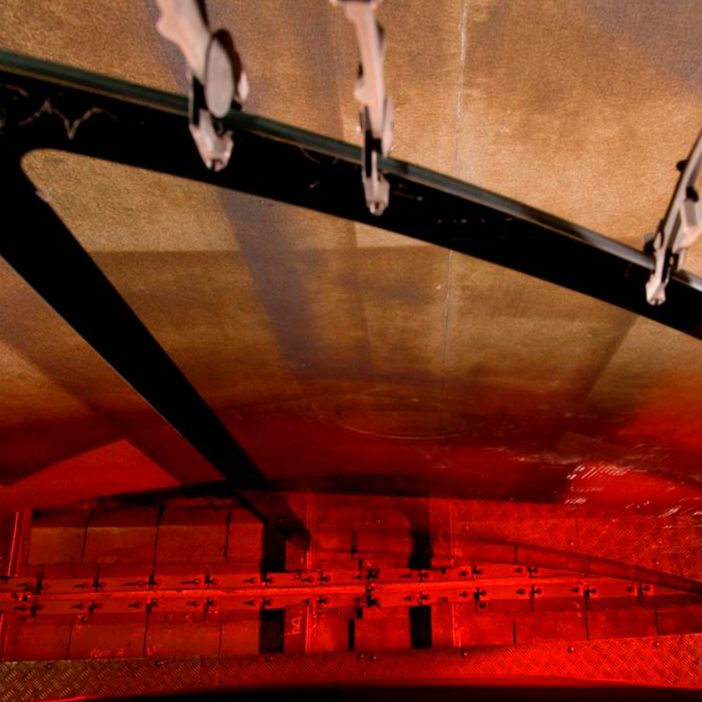

The traditional method for producing safety-rated glass involves thermal toughening. Trend Marine operates several facilities capable of manufacturing flat glass as well as single and bi-curvature toughened marine glass.

The glass is heated above its annealing point, approximately 720°C (1,328°F), and then rapidly cooled using forced air drafts while the inner portion remains free to flow for a short period.

Thermally tempered glass can also be laminated or incorporated into IGUs (insulated glazing units).

Samples of all toughened glass undergo impact testing to ensure compliance with ISO 614. In line with our ISO 9001 procedures, all tests are fully recorded and audited.

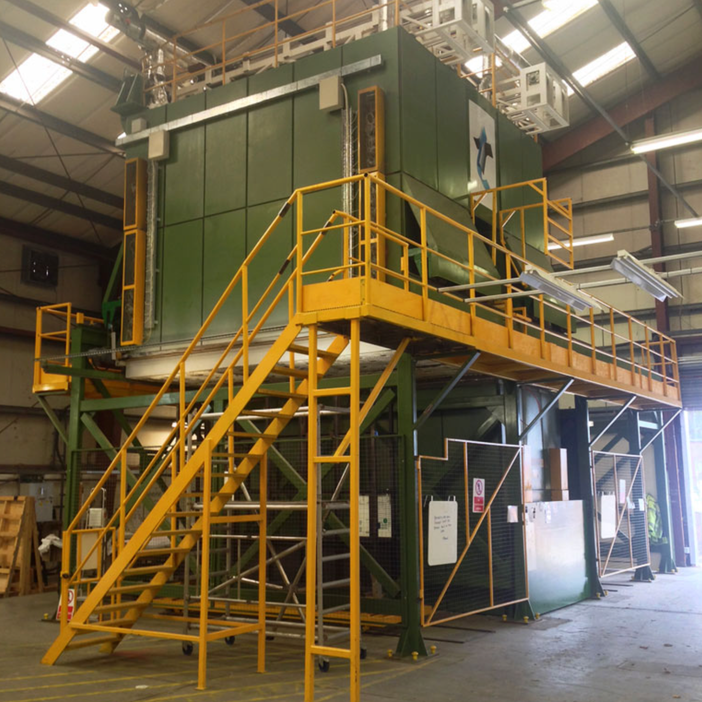

The process of chemical toughening produces glass without any heat-toughening marks or optical distortion. The glass is immersed in a bath containing a potassium salt (typically potassium nitrate) at temperatures exceeding 400°C. This initiates an ion exchange between the sodium ions in the glass surface and the potassium ions from the bath solution. The chemical process forms a substantial toughened ‘skin’ on the glass, making it significantly more resilient and durable.

Once chemically toughened, the glass is laminated on-site at Trend Marine to achieve safety-rated specifications.

Glass will be chemically toughened in accordance with EN 12337-1 and batch tested in accordance with EN 1288-3.

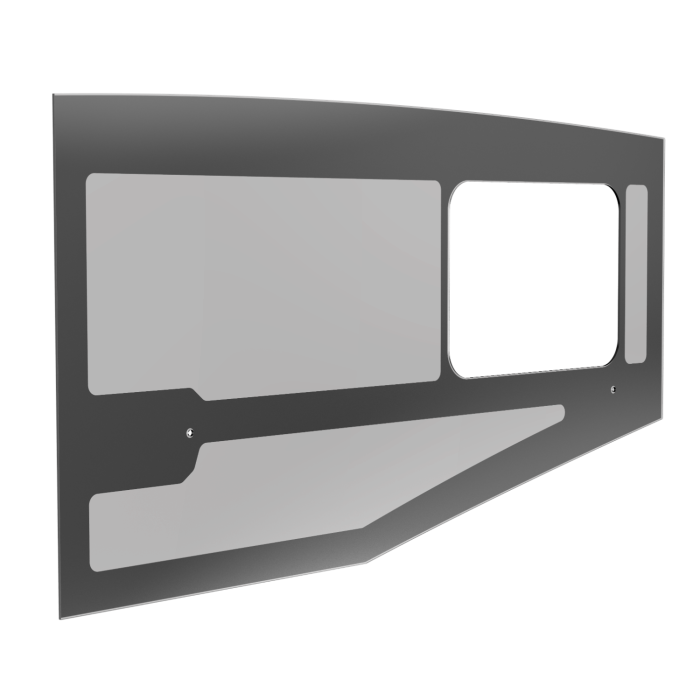

Choose from advanced interlayer technologies such as EVA or DuPont™ SentryGlas® for superior strength and performance. These high-strength options deliver significant weight savings compared to traditional glass specifications. Available in flat or curved formats, our glazing solutions offer UV protection, thermal insulation, and a range of custom features including switchable glass, coloured films, and heated options—providing flexibility and innovation for every marine application.

Choose from advanced interlayer technologies such as EVA or DuPont™ SentryGlas® for superior strength and performance. These high-strength options deliver significant weight savings compared to traditional glass specifications. Available in flat or curved formats, our glazing solutions offer UV protection, thermal insulation, and a range of custom features including switchable glass, coloured films, and heated options—providing flexibility and innovation for every marine application.

Designed for large windscreens or complex geometries demanding superior optical clarity. Glass is sag-bent over precision-engineered stainless steel tooling, chemically toughened for strength, and laminated with high-performance interlayers to ensure structural integrity and durability.

Choose from advanced interlayer technologies such as EVA or DuPont™ SentryGlas® for superior strength and performance. These high-strength options deliver significant weight savings compared to traditional glass specifications. Available in flat or curved formats, our glazing solutions offer UV protection, thermal insulation, and a range of custom features including switchable glass, coloured films, and heated options—providing flexibility and innovation for every marine application.
